Standards:

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3bz 2.5G/5GBASE-T

IEEE 802.3an 10GBASE-T

IEEE 802.3ae 10Gbps Ethernet

IEEE 802.3x full-duplex flow control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Forward & Filtering Rate:

100Mbps

1000Mbps

2.5Gbps

5Gbps

10Gbps

Network Cables:

10G/5G/2.5G/1G/100M BASE-T:

 10G – Cat 6A/7

 5G – Cat 6/6A/7

 1G/2.5G – Cat 5e/6/6A/7

100M – Cat 5/5e/6/6A/7

 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.)

 EIA/TIA-568 100-ohm STP (100 meters, max.)

10GBASE-LR/SR/BX:

 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m

 9/125μm single-mode fiber optic cable, up to 80km

Processing Type:

Store-and-Forward

Fabric:

20Gbps

Jumbo Frame:

16K

Address Table:

9K entries, automatic source address learning and aging

Interface

Connector:

1 x RJ45

Optical Port:

1 x SFP+

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

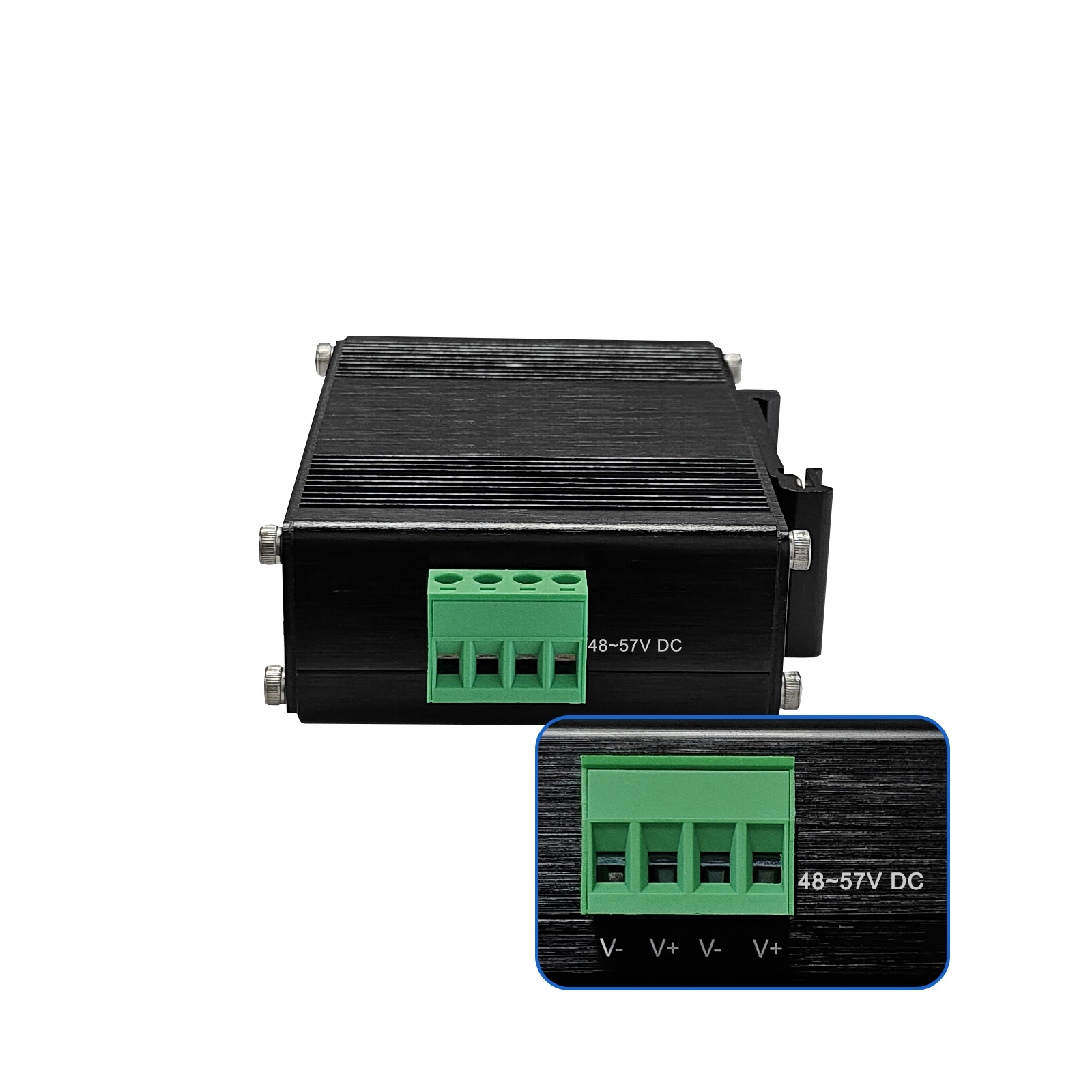

Input Power:

48~57VDC,Redundant Power (4-pin Terminal Block)

Power Consumption:

95W Max

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

DIP Switch

4-digit DIP switch function

DIP

Function

Settings

SW 1

Reserved

ON - Reserved

OFF - Reserved

SW 2

Reserved

ON - Reserved

OFF - Reserved

SW 3

Reserved

ON - Reserved

OFF - Reserved

SW 4

Reserved

ON - Reserved

OFF - Reserved

Note: DIP Switch’s function can be customized based on client’s requirements.

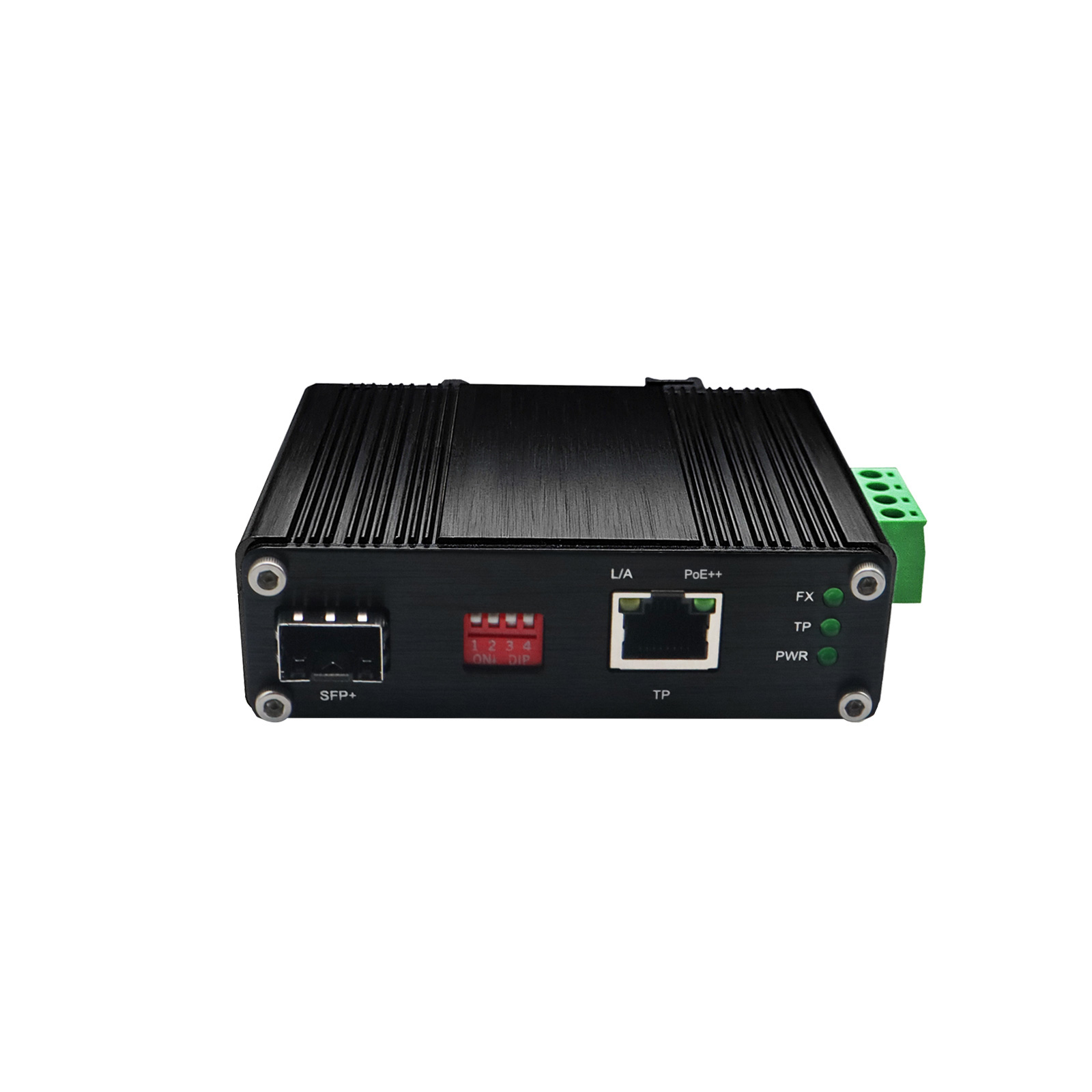

LED Indicators:

PWR:

Power Status

L/A:

Link/Activity at Ethernet Port

TP:

Ethernet Status

FX:

SFP+ Fiber Port Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

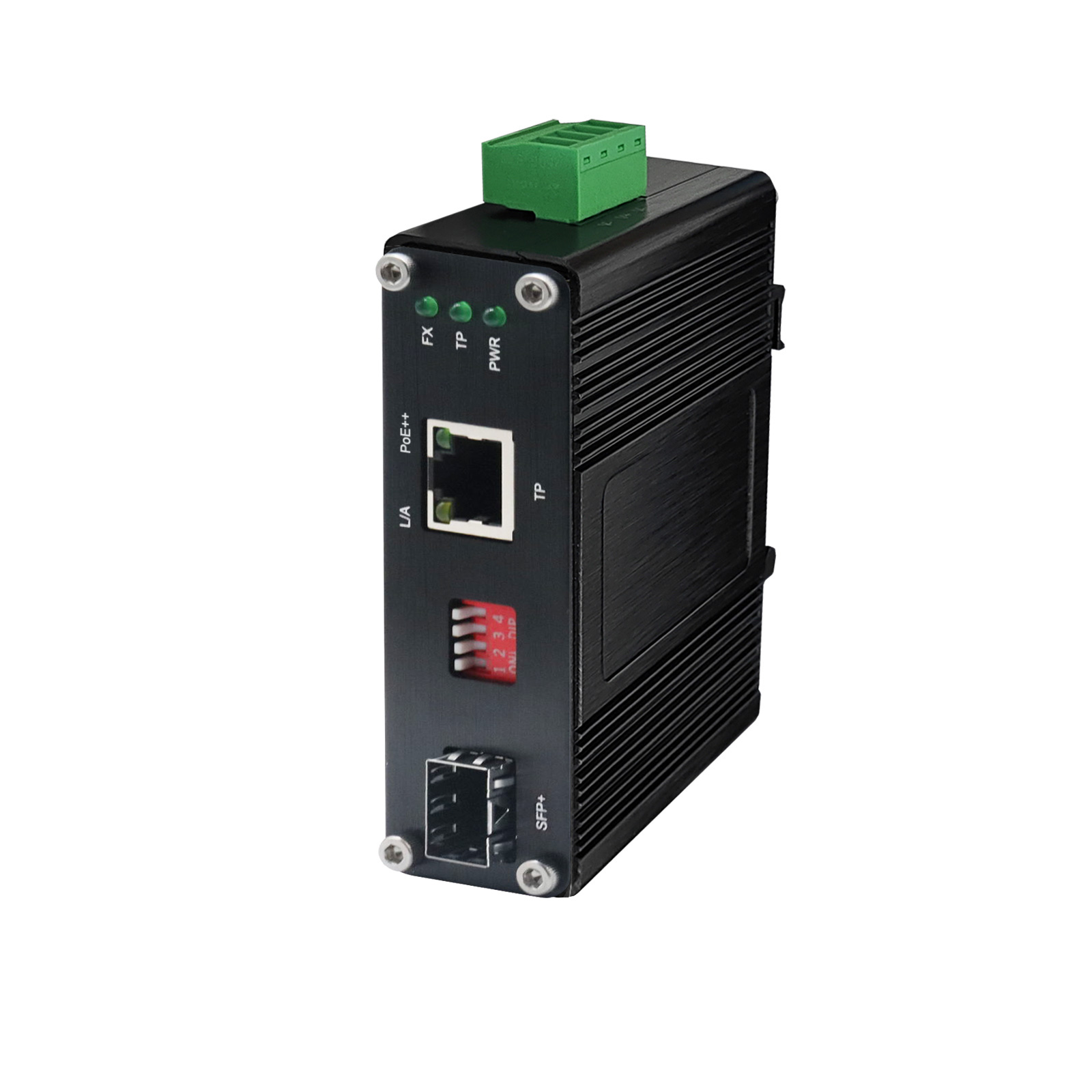

Mounting Options:

DIN-Rail/Wall-mount

Regulatory Approvals

ISO9001, CE, RoHS, FCC

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
